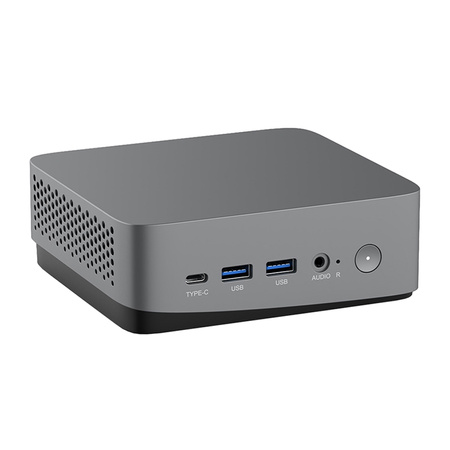

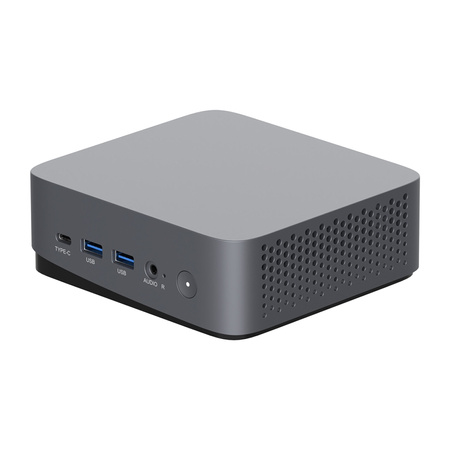

MINI PC AceMagic AD16 , Intel 1340P + Intel® Iris® Xe Graphics 32GB RAM + 1TB
MINI PC AceMagic AD16 , Intel 1340P + Intel® Iris® Xe Graphics 32GB RAM + 1TB gray.
Looking for a powerful computer in a compact form factor? The AceMagic AD16 is a mini PC that offers impressive power and fast performance despite its compact size. Equipped with an Intel Core i5-1340P processor with 12 cores, Intel® Iris® Xe graphics, up to 32GB of DDR4 RAM and a fast 1TB NVMe SSD, it becomes a reliable tool for any technology lover. Support for 4K resolution, dual HDMI output, a variety of connectivity standards and expandability make it a versatile solution for work, study and entertainment.
Compact size, huge power
The AceMagic AD16 is a versatile mini PC that combines high performance with a compact form factor. Despite its compact dimensions of just 137.7 × 126.2 × 47 mm and light weight of 540 g, it offers functionality comparable to a classic desktop computer. The plastic case guarantees durability, and the elegant uniform color fits perfectly into the interior of any office, bedroom or workshop.
Powerful processor and excellent graphics
At the heart of the device is a 12-core, 16-threaded Intel Core i5-1340P processor. It offers clocking up to 4.40 GHz and 12 MB of cache, which translates into smooth operation both during daily use and more demanding activities. With an energy efficiency of 28 watts, the hardware remains cool and quiet, regardless of the intensity of work. In addition, the integrated Intel® Iris® Xe graphics chip clocked at 1.30 GHz provides support for resolutions up to 4096 × 2304 @ 60 Hz. This makes the device suitable not only for office work, but also for multimedia playback or streaming. Dual-screen support via HDMI 2.0 enables comfortable multitasking.
No worries about lack of memory
AceMagic AD16 is equipped with 32 GB of DDR4 3200 MHz RAM (SO-DIMM DDR4 x2), which guarantees stability even when working on multiple applications simultaneously. A high-speed 1TB SSD provides lightning-fast data access and fast boot times. Expandability up to 4TB and support for 2.5" HDDs up to 2TB gives you full freedom in space management.
Stable network connection
The AceMagic AD16 offers extensive connectivity - dual-band Wi-Fi (802.11 a/b/g/n/ac/ax - Wi-Fi 5/6), Bluetooth 4.2/5.2 and an RJ45 1000 Mbps port. So you can count on a stable Internet connection and fast data transfer, no matter what the conditions.
Rich set of connectors and support for 4K

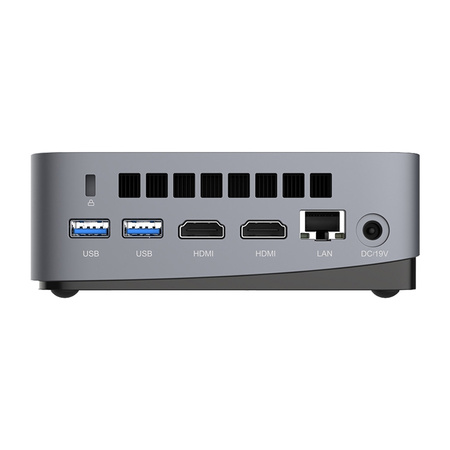

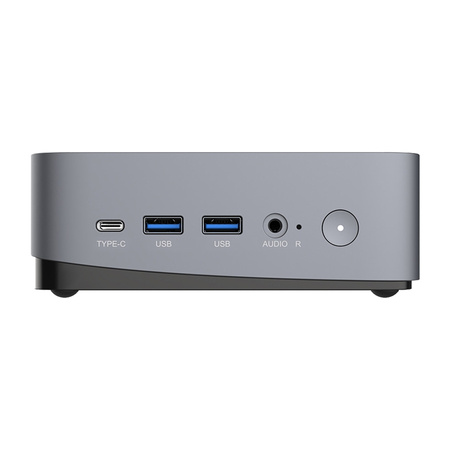

The chassis features 4 USB 3.0 ports (Type-A, 5 Gbps), 2 HDMI 2.0 outputs (4K 60Hz), a Type-C connector (5 Gbps, data only) and a 3.5mm audio connector. The hardware also supports TPM 2.0, automatic power-on and UEFI diskless boot, making it an ideal choice for professional applications as well.
| Manufacturer | AceMagic |
|---|---|
| Model | AD16 |
| Dimensions | 137.7 x 126.2 x 47 mm |
| Housing material | Plastic |
| Weight | 540 g |
| LED indicators | Built-in (white light - device on) |
| Connectors and interfaces | 4× USB 3.0 Type-A (5 Gbps), HDMI: 2× HDMI 2.0 (max. 4K 60 Hz), RJ45 (Ethernet): 1× RJ45 1000 Mbps, USB-C: 1× Type-C (data only, 5 Gbps), Power Input: DC Jack 5.5/2.1 mm, Audio-in/out: 1× 3.5 mm connector (2-in-1 combo) |
| Antennas | FPC Antenna 1: Wi-Fi 2.4 GHz + 5 GHz + Bluetooth, FPC Antenna 2: Wi-Fi 5.0 |
| Operating system | None |
| Operating temperature | 0 ~ 40°C |
| Storage temperature | -20 ~ 60°C |
| Humidity | Up to 90% at 40°C (non-condensing) |
| ΔT (temperature difference) | Max 23°C |
| Input | 100~240V 50/60Hz |
| Output | 19V/3.42A DC Jack 5.5*2.1mm |
| Color | Gray |
Processor (CPU)
| Model | Intel 1340P |
|---|---|
| Technological process | Intel 7, 10 nm |
| Cores/threads | 12 cores, 16 threads |
| Cache memory | 12 MB Intel® Smart Cache |
| Maximum clocking | 4.40 GHz |
| Power consumption | 28 W |
Graphics chip (GPU)
| Model | Intel® Iris® Xe Graphics |
|---|---|
| GPU clock speed | 1.30 GHz |
| Maximum resolution | 4096 × 2304 @ 60 Hz |
RAM
| Type | SO-DIMM DDR4 ×2 |
|---|---|
| Clocking | Up to 3200 MT/s |
| Maximum capacity | up to 64 GB |
Storage
| SSD capacity | Up to 4 TB |
|---|---|
| SSD type | M.2 2280 NVMe Gen4 ×1, M.2 2280 NVMe Gen3/NGFF ×1 |
| 2.5" drive | SATA 2.5" interface - Up to 2 TB |
| TF card reader | None |
BIOS functions
| RTC (real-time clock) | Support in BIOS |
|---|---|
| Automatic power-on | Support in BIOS |
| Diskless booting | UEFI support |
| TPM | Integrated TPM 2.0 module |
Network connectivity
| Wi-Fi module | M.2 E_Key |
|---|---|
| Wi-Fi standards | IEEE 802.11 a/b/g/n/ac/ax (Wi-Fi 5 and 6) |
| Bluetooth module | USB |
| Bluetooth versions | 4.2 / 5.2 |
| Ethernet | LAN1: 10/100/1000 Mbps (adaptive), LAN2: none |
| 3G/4G | None |
